After setting up the model and analyzing it (Clicking the 'Analyze' button
) you can click
to see the deformed shape of the Model.
•: Deformation
Note: Deformation values are given also on screen, if the mouse pointer hovers over an element. The values that are given on screen are the dX, dY, dx and dy displacements of the corresponding point of each element.
•dX and dY are the X- and Y- displacements of a point, respectively, in Global axes. For example a positive dX means displacement to the right, while a positive dY means displacement upwards.
•dx and dy are the x- and y- displacements of a point, respectively, in Local Element Axes, where x is defined from the Start Node i and the End Node j of the Element and y is perpendicular to it.

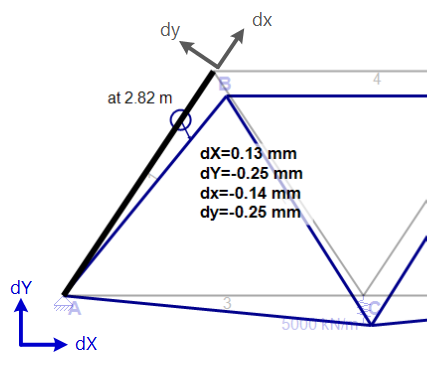

See the illustrative example below which explains this convention.
Example
