EngiLab Truss.2D supports the following predefined Systems of Units:
•Default Metric
•Default US
•International SI
The three systems are shown in the screenshots below. In these systems Units are "locked" and cannot be changed. The Decimal places for each quantity can be changed. These Decimal places are for illustration purposes, for showing the results or the Model data on screen and do not affect any calculations or the accuracy of the Analysis.
Tip: If you want to change a predefined System of Units, all you need to do is to select it and then click "Custom". This will unlock all fields and you can change any of them. The system will change to "Custom" but it will be based on the previously selected system.

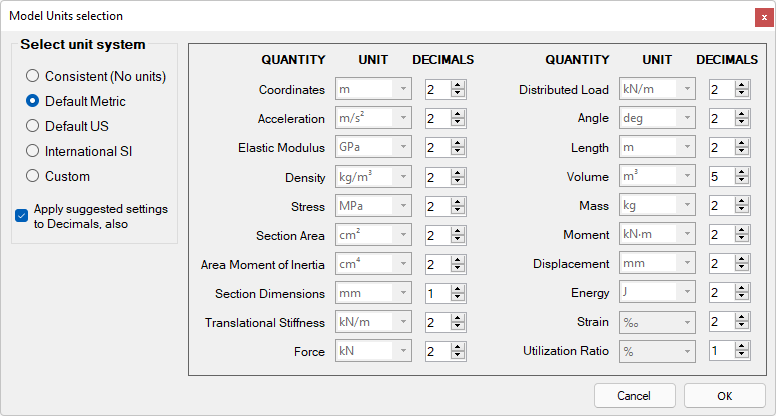

Default Metric System of Units

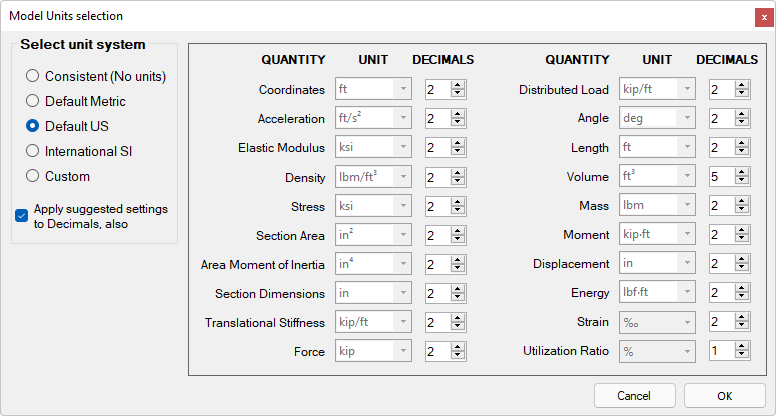

Default US System of Units

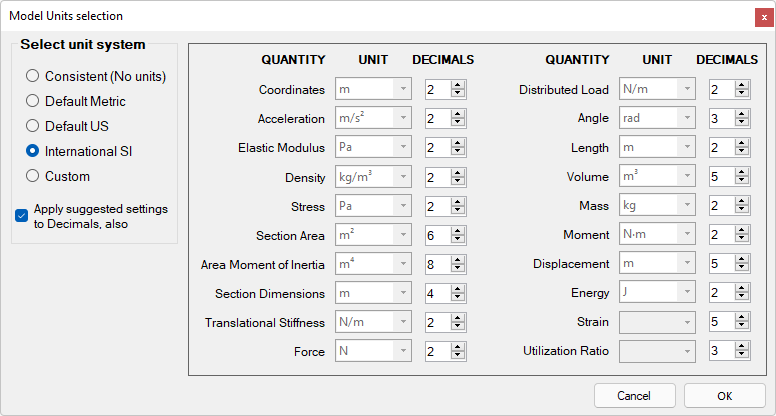

International SI System of Units
