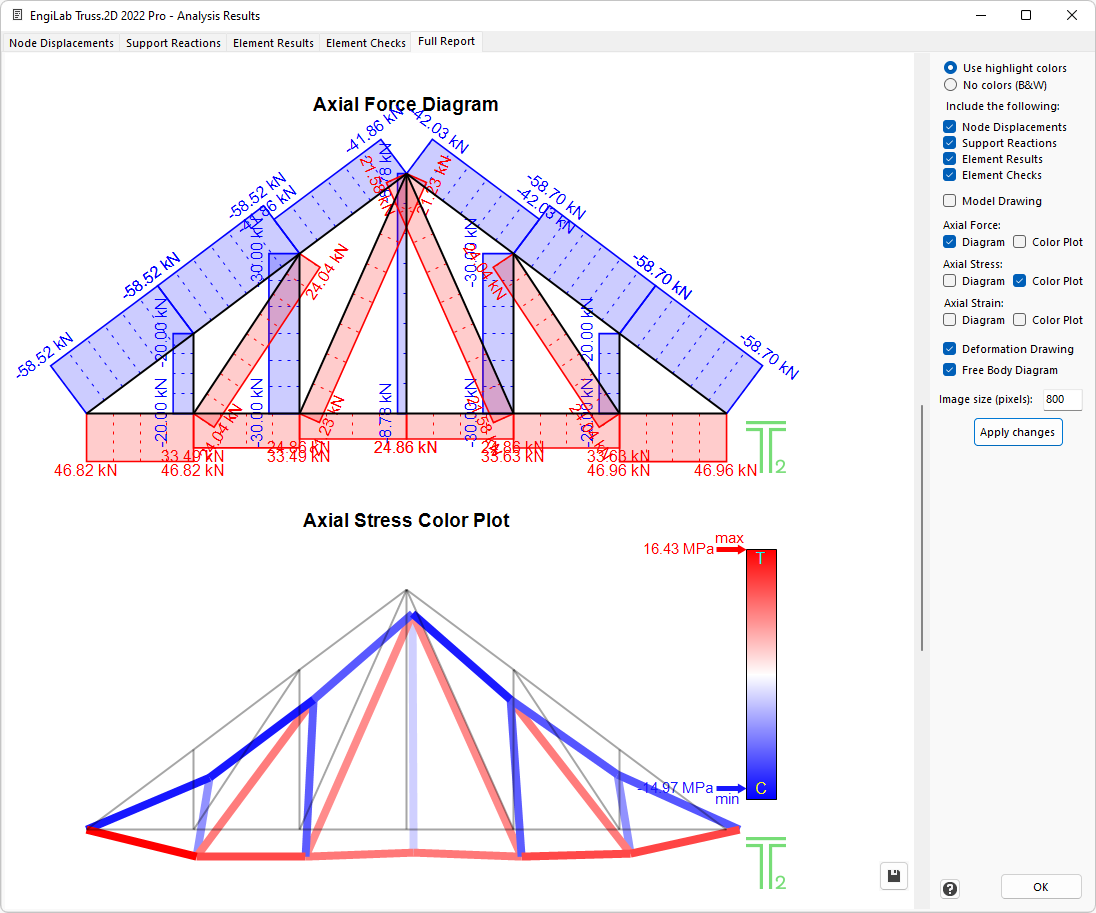

This tab shows all the Analysis results in Rich Text Format (RTF).
•The Document is editable. The user can edit the text and can even resize the images, if needed.
•The user can easily copy the text and/or images of the document and paste it anywhere (for example in MS Word) for further processing and printing.
•Clicking the "Save" button will save the document in RTF format. The file can be opened with any text editor, such as MS Word, for further processing and printing.
•On the right, there are settings where the user can select what to include in the report.
•The user can choose the (max) picture size (in Pixels) for the included images.
•The Analysis Validation is not included in this Report.
The following 4 tables can be included in the Report:
•Node Displacements
•Support Reactions
•Element Results
•Element Checks
The following 9 images can be included in the Report:
•Model Drawing
•Axial Force Diagram, Axial Stress Diagram, Axial Strain Diagram
•Axial Force Color Plot, Axial Stress Color Plot, Axial Strain Color Plot
•Deformation Drawing
•Free Body Diagram
