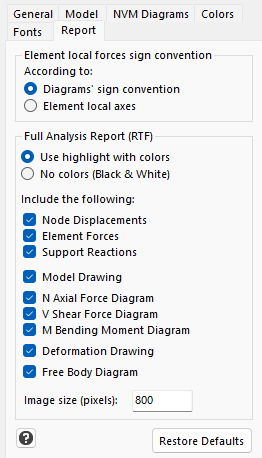

Available settings:
Element local forces sign convention
Determines how the sign of the element local forces will be reported in the Analysis Results. There are two options:
1. Use the sign convention of the N, V, M diagrams. For example, the convention could be as shown below.
|
for Axial Force |
|
for Shear Force |
|
for Bending Moment |
The above is only an example of these settings, as the sign convention for the diagrams can be changed by the user. See NVM Diagrams (Settings).
2. Use the sign convention of the Finite Element Analysis (Element local axes), as shown below. This sign convention cannot change.
Full Analysis Report (RTF)
•Use highlight with colors / No colors (Black & White). Applies only for the Full Analysis Report. You can choose to use color to highlight special items (Constraints, Springs, Hinges) or only Black and White without highlighting special items.
•Elements to include: You can choose what exactly elements to include in the Full Report
•Image size (pixels): You can select the (max) size of the images, in pixels.
