After setting up the model and analyzing it (Clicking the 'Analyze' button
) you can click
to see the Free Body Diagram of the Model.
•: Free Body Diagram
The Free Body Diagram shows the support reactions on screen and also the calculations of the equilibrium of the Model.
Note: If the mouse pointer moves over an element, the program shows the corresponding N, V and M values at the corresponding point along the element. The program shows also the Element End Forces and the calculations for the equilibrium of the specific Element.

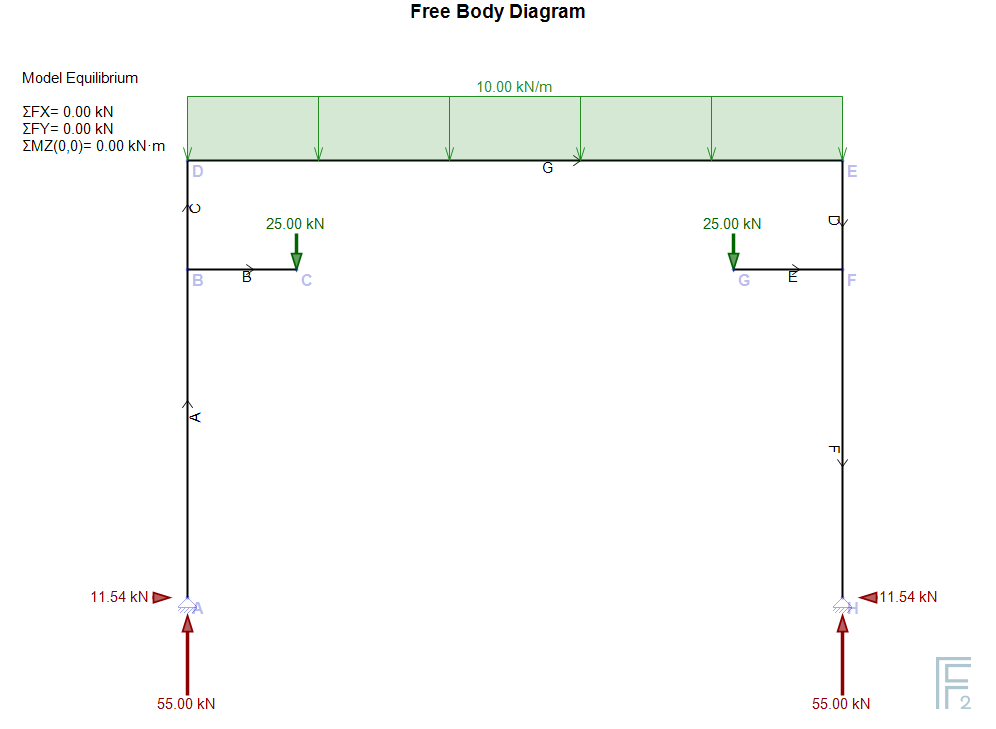

Example
