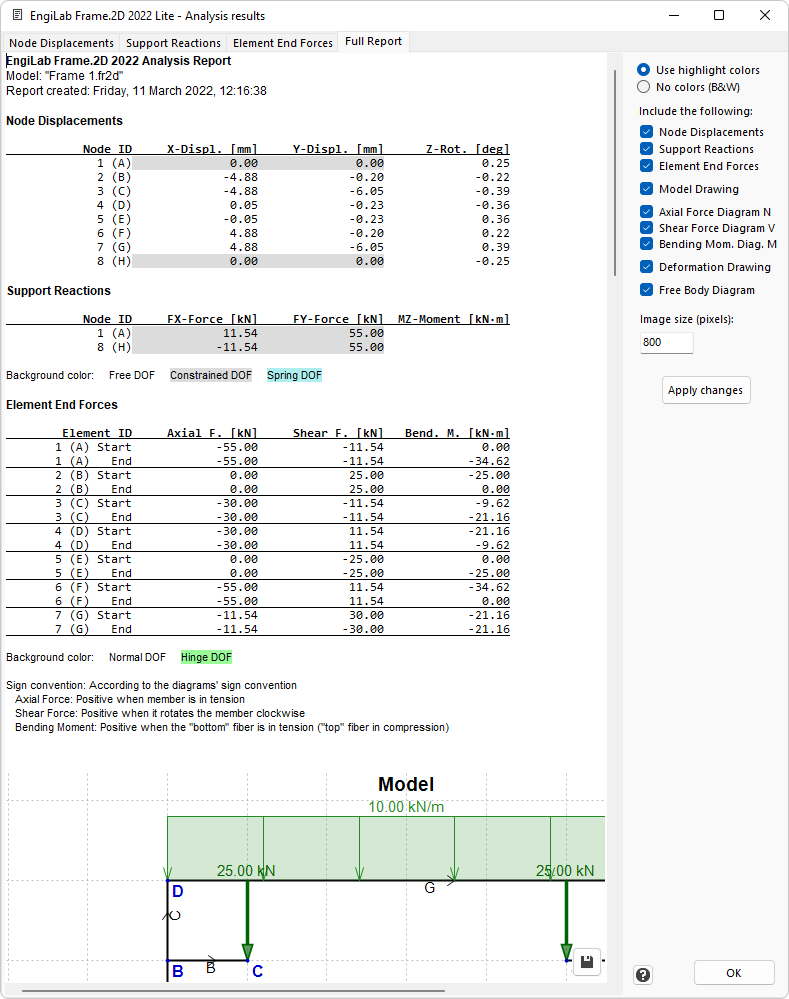

This tab shows all the Analysis results in Rich Text Format (RTF). You can easily copy the document and paste it anywhere (for example in MS Word), or you can click the "Save" button and save the document in RTF format which can be opened with a text editor, such as MS Word.
All the diagrams are also included in the Full Report by default. The following images are added:
1.Model
2.Axial Force Diagram (N)
3.Shear Force Diagram (V)
4.Bending Moment Diagram (M)
5.Deformation (D)
6.Free Body Diagram (F)
The user can choose which elements to include in the Full Report. In EngiLab Frame.2D 2021 the user can choose the (max) picture size (in Pixels) for these images.
